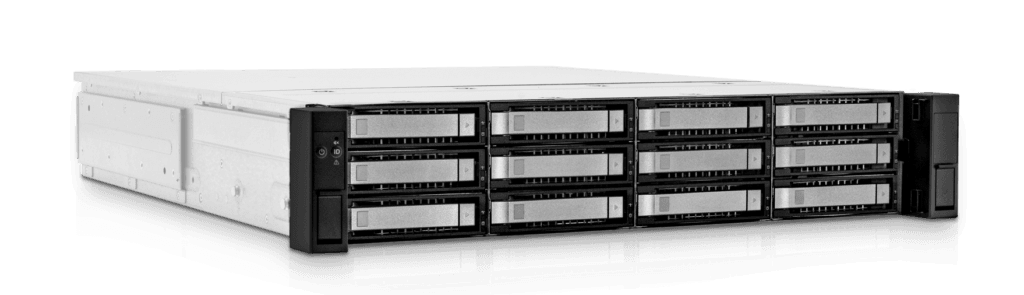

2U12Bay Single or Dual SAS Expanders JBOD
- SAS JBOD with built-in Cable-less 12G SAS Expander with SES2 supported
- Short-Depth Chassis & Tool-less Rail
- Tool-less HDD Trays for 3.5” HDDs, Same HDD Tray supporting both 3.5” & 2.5” HDDs
- Redundant & Hot-Swap Power Supply

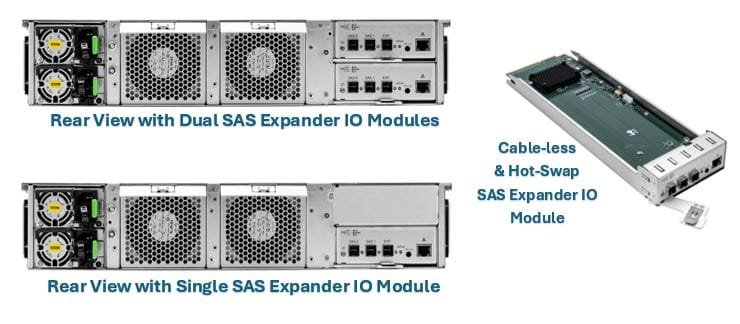

- Single or Dual 12G SAS Expander IO Modules – Hot-Swappable & Daisy-Chainable.
Technical Specifications
| Model # | 1zJBOD-R212S | 1zJBOD-R212D |
| Category | 12G SAS JBOD, Single SAS Expander | 12G SAS JBOD, Dual SAS Expanders |
| Form Factor | 2U 19” Rackmount | 2U 19” Rackmount |
| Drive Bay Storage | * 12 x Hot-Swap Tray for 3.5” & 2.5” HDDs & SAS/ SATA SSDs, support 12G SAS & 6G SATA * Tool-less for 3.5” HDDs | * 12 x Hot-Swap Tray for 3.5” & 2.5” HDDs & SAS/ SATA SSDs, support 12G SAS & 6G SATA * Tool-less for 3.5” HDDs |
| SAS Expander | 1 x SAS Expander, Removable | 2 x SAS Expander, Hot-Swappable |
| Host | 3 x Mini-SAS HD (SFF-8644) Connectors. | 3 x Mini-SAS HD (SFF-8644) Connectors per SAS IO Module. |
| Expansion | Daisy-Chainable using one of the three Mini-SAS HD (SFF-8644) connectors. | Daisy-Chainable using one of the three Mini-SAS HD (SFF-8644) connectors from each SAS Expander IO Module. |
| Cooling | 4 x Fans, 80 x 38mm PWM Hot-Swap, 5500 RPM | 4 x Fans, 80 x 38mm PWM Hot-Swap, 5500 RPM |
| Power Supply | 1 + 1 550W Redundant & Hot-Swap, 80Plus Platinum CRPS | 1 + 1 550W Redundant & Hot-Swap, 80Plus Platinum CRPS |
| Management & Monitoring | · SES2 supporting status monitoring on: Fan, HDD, Power Supply, Temp, etc. – host needs to be able to query to the SES2. · Built-In temperature sensors. · RS232 & RJ45 available for JBOD management & monitoring | · SES2 supporting status monitoring on: Fan, HDD, Power Supply, Temp, etc. – host needs to be able to query to the SES2. · Built-In temperature sensors. · RS232 & RJ45 available for JBOD management & monitoring |

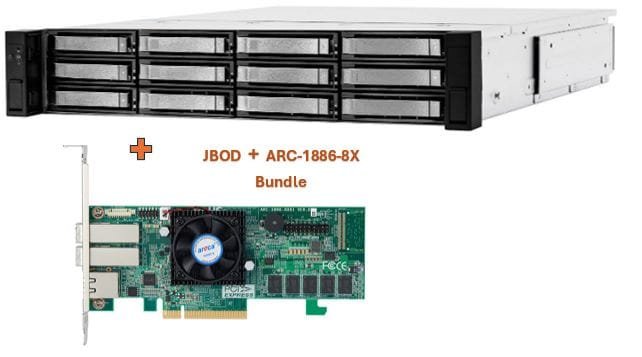

| RAID | · No RAID function, just Bunch of Disks, RAID function coming from host. · Please consider our Areca ARC-1886-8X / ARC-1886-8X8i, or MegaRAID 9580-8i8e bundles. | · No RAID function, just Bunch of Disks, RAID function coming from host. · Please consider our Areca ARC-1886-8X / ARC-1886-8X8i, or MegaRAID 9580-8i8e bundles. |
| Cables | External SAS cable not included, unless for the ARC-1886/MegaRAID 9580 Bundles. | External SAS cable not included, unless for the ARC-1886/MegaRAID 9580 Bundles. |
| Rail | 20″ tool-less & ball-bearing slide rail included. | 20″ tool-less & ball-bearing slide rail included. |
| Dimension & Weight | Product 20.9″D x 17.7″ W x 3.43″ H / 530.9 D x 449.5 W x 87.2mm H; 35.12LB/15.93KG without HDDs Package 31.49” W x 24” W x 8.98” H / 800 D x 610 W x 228 H (mm); 42.46LB/19.26KG without HDDs | Product 20.9″D x 17.7″ W x 3.43″ H / 530.9 D x 449.5 W x 87.2mm H; 35.12LB/15.93KG without HDDs Package 31.49” W x 24” W x 8.98” H / 800 D x 610 W x 228 H (mm); 42.46LB/19.26KG without HDDs |
