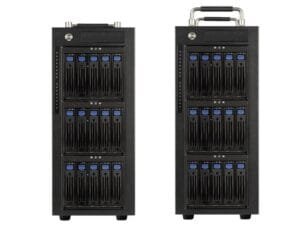

Mid- Tower 15Bay SAS JBOD
- SAS JBOD with built-in 12G SAS Expander; Multi JBODs daisy-chainable
- Less than 20” Short-Depth Chassis; Foldable Handles for Easy-Moving & Easy-Carrying
- Same HDD tray supports both 3.5” & 2.5” HDDs
- Option available for Redundant & Hot-Swap Power Supply
Technical Specifications
| 1zJBOD-MT15S (Single Power) | 1zJBOD-MT15D (Dual Power) | |
| Category | 12G SAS JBOD, Single SAS Expander | 12G SAS JBOD, Single SAS Expander |
| Form Factor | Mid-Tower Chassis | Mid-Tower Chassis |
| Drive Bay | 15 x Hot-Swap Tray for 3.5” & 2.5” HDDs & SAS/ SATA SSDs, support 12G SAS & 6G SATA | 15 x Hot-Swap Tray for 3.5” & 2.5” HDDs & SAS/ SATA SSDs, support 12G SAS & 6G SATA |
| SAS Expander | 1 x SAS Expander, Daisy-Chainable | 1 x SAS Expander, Daisy-Chainable |
| Host | 2 x Mini-SAS HD (SFF-8644) Connectors | 2 x Mini-SAS HD (SFF-8644) Connectors |
| Expansion | Daisy-Chain-able using one of the two Mini-SAS HD (SFF-8644) connectors | Daisy-Chain-able using one of the two Mini-SAS HD (SFF-8644) connectors |
| Cooling | 3 x 90mm PWM Fans & 1 x 120mm PWM Fan | 3 x 90mm PWM Fans & 1 x 120mm PWM Fan |
| Power Supply | 500+ Watt Single Power Supply | 1 + 1 500+ Watt Redundant & Hot-Swap Power supply |

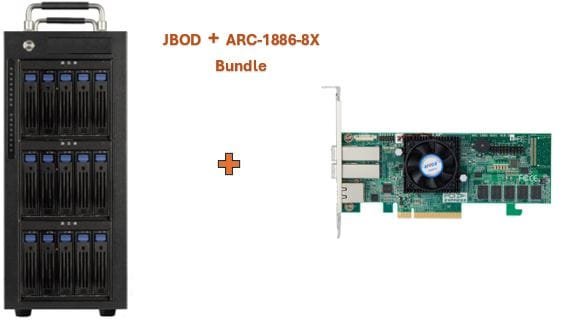

| RAID | * No RAID function, just Bunch of Disks, RAID function coming from host. * Please consider our Areca ARC-1886-8X / ARC-1886-8X8i, or MegaRAID 9580-8i8e bundles | * No RAID function, just Bunch of Disks, RAID function coming from host. * Please consider our Areca ARC-1886-8X / ARC-1886-8X8i, or MegaRAID 9580-8i8e bundles |
| Cables | External SAS cable not included, unless for the ARC-1886 / MegaRAID 9580 Bundles | External SAS cable not included, unless for the ARC-1886 / MegaRAID 9580 Bundles |
| Dimension & Weight | Product 7.80” W x 19.49” D x 18.23” H / 198 W x 495 D x 463 H mm; ~ 27 LB / 12.25KG without HDDs Package 13” W x 26.25” D x 23.25” H / 330 W x 666 D x 590 H (mm); ~36LB/16.33KG without HDDs | Product 7.80” W x 19.49” D x 18.23” H / 198 W x 495 D x 463 H mm; ~ 27 LB / 12.25KG without HDDs Package 13” W x 26.25” D x 23.25” H / 330 W x 666 D x 590 H (mm); ~36LB/16.33KG without HDDs |
