Mini 12Bay Portable Tower SAS JBOD
- SAS JBOD with built-in 12G SAS Expander; Multi JBODs daisy-chainable.
- Mini & Compact Size with 4 Handles for Easy-Moving, Easy-Carrying, and Portability.
- Made with Solid & Rigid metal material to survive frequent transporting.

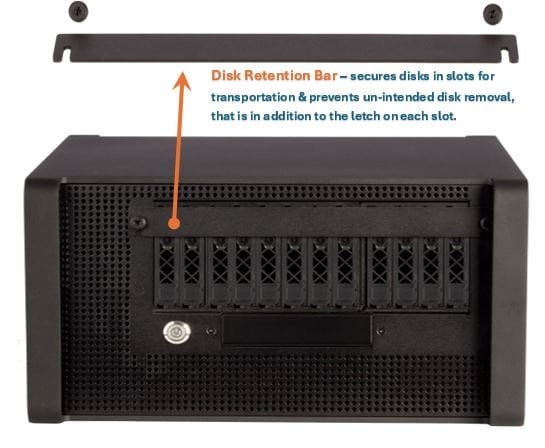

- Disk Retention-Bar for extra disk security during transportation.

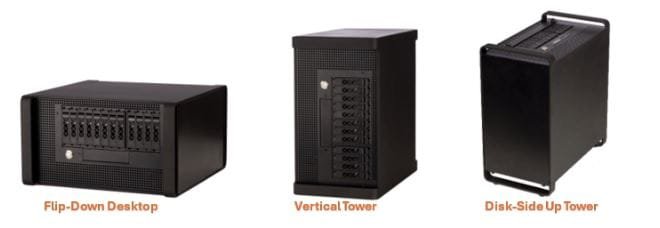

- 3 Way-Positioning: best-space-fitting for field deployment – Desktop, Tower, Disk-Side Up Tower.
Technical Specifications
| Model# 1zJBOD-Mini12 | |
| Category | 12G SAS JBOD, Single SAS Expander |
| Form Factor | Mini Portable Desktop/Tower with 4 Handles |
| Drive Bay | 12 x 2.5” SAS/SATA HDDs & SSDs |
| SAS Expander | 1 x SAS Expander, Daisy-Chainable |
| Host | 2 x Mini-SAS HD (SFF-8644) Connectors. |
| Expansion | Daisy-Chain-able using one of the two Mini-SAS HD (SFF-8644) connectors |
| Cooling | 2 x 80mm PWM Fan |
| Power Supply | 500+ Watt Single Power Supply |

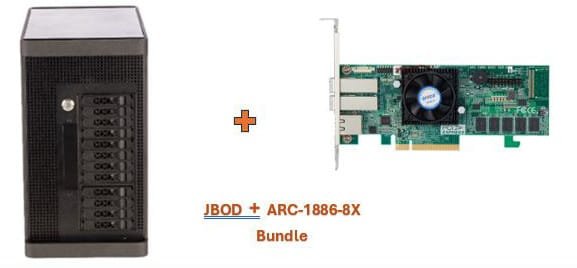

| RAID | No RAID function, just Bunch of Disks, RAID function coming from host. Please consider our Areca ARC-1886-8X, ARC-1886-8X8i, or MegaRAID 9580-8i8e bundles |
| Cables | External SAS cable not included, unless for the ARC-1886, MegaRAID 9580 Bundles |

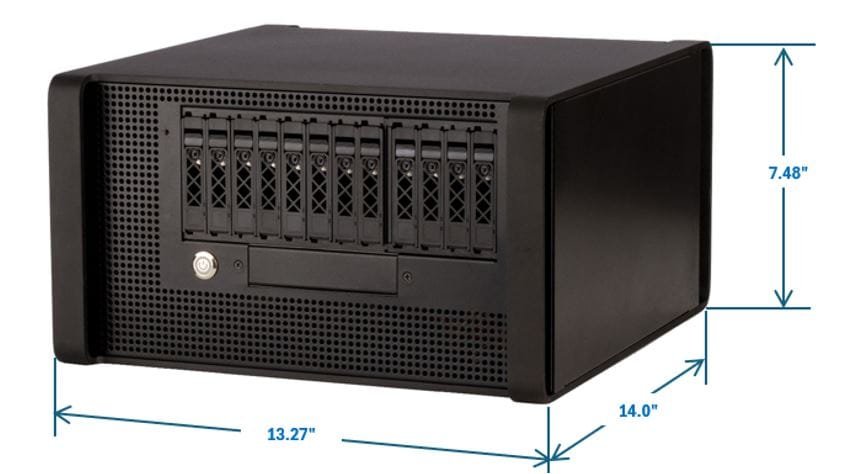

| Dimension & Weight | Position-1: Flip-down Desktop, Disk at Front, Handles at Front & Back 7.48” H x 13.27” W x 14” D, 190mm H x 337.30mm W x 356mm D 17LB without disks Position-2: Vertical Tower, Disk at Front, Handles at Front & Back. 13.27” H x 7.48” W x 14” D 337.30mm H x 190mm W x 356mm D 17LB without disks Position-3: Disk-Side Up Tower, Disk at Top, Handles at Top & Bottom 14” H x 7.48” W x 13.27” D 356mm H x 190mm W x 337.30mm D 17LB without disks Shipping / Package Dimension & Weight 18″H x 12″ W x 19″ D 20 LB without disk |
